LM-GA Linear Bushing
Datasheet

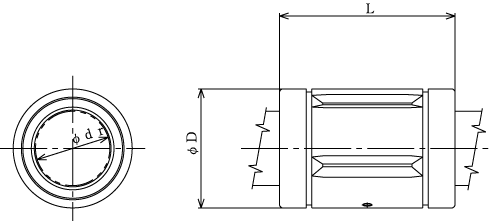

| Model No. | Main dimensions | ||||||
| Inscribed bore diameter | Outer diameter | Length | |||||
| dr | Tolerance | D | Tolerance | L | Tolerance | ||
| Precision | High | Precision/High | |||||
| mm | mm | mm | mm | mm | mm | mm | |
| LM 6GA | 6 | 0 | 0 | 12 | 0 | 19 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8SGA | 8 | 0 | 0 | 15 | 0 | 17 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8GA | 8 | 0 | 0 | 15 | 0 | 24 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 10GA | 10 | 0 | 0 | 19 | 0 | 29 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 12GA | 12 | 0 | 0 | 21 | 0 | 30 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 13GA | 13 | 0 | 0 | 23 | 0 | 32 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 16GA | 16 | 0 | 0 | 28 | 0 | 37 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 20GA | 20 | 0 | 0 | 32 | 0 | 42 | 0 |
| –0.007 | –0.010 | –0.016 | –0.2 | ||||
| LM 25GA | 25 | 0 | 0 | 40 | 0 | 59 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 30GA | 30 | 0 | 0 | 45 | 0 | 64 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 35GA | 35 | 0 | 0 | 52 | 0 | 70 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 38GA | 38 | 0 | 0 | 57 | 0 | 76 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 40GA | 40 | 0 | 0 | 60 | 0 | 80 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 50GA | 50 | 0 | 0 | 80 | 0 | 100 | 0 |
| –0.008 | –0.012 | –0.022 | –0.3 | ||||
| LM 60GA | 60 | 0 | 0 | 90 | 0 | 110 | 0 |
| –0.009 | –0.015 | –0.022 | –0.3 | ||||
| LM 80GA | 80 | 0 | 0 | 120 | 0 | 140 | 0 |
| –0.009 | –0.015 | –0.022 | –0.4 | ||||
| LM 100GA | 100 | 0 | 0 | 150 | 0 | 175 | 0 |
| –0.010 | –0.020 | –0.025 | –0.4 | ||||
| LM 120A | 120 | 0 -0.010 | 0 -0.020 | 180 | 0 0.025 | 200 | 0 -0.4 |
